Product Dimensions 34"h x 23.63"w x 23.5"d

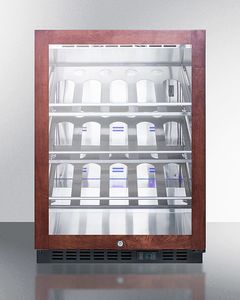

*CUSTOM PANEL & HANDLE SOLD SEPARATELY* - The SCR610BLXPNR is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 5 cu.ft. interior accommodates up to 40 Bordeaux style wine bottles. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use.Read More
Please contact our store for more details and availability timelines.
View Options
View Options
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR610BLCHPNR is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD. Inside, the SCR610BLCHPNR includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. With its unique design and commercial grade construction, the SCR610BLCHPNR is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.
ETL-S listed to NSF-7 commercial standards
Stainless steel shelving is specially sized to store larger wine and champagne bottles, with adjustable clips pre-positioned to display bottles at a slight angle
Panel-ready door frame allows you to create a truly custom look under the counter
Digital thermostat offers precise and convenient temperature control with a wide range to accommodate red or white wine
Powerful but efficient LED lighting provides a full view of the interior
Stainless steel interior offers added durability and improved sanitation
Flexible design allows built-in or freestanding use in 24" spaces
General Specs | |
Product Weight (lbs.) | 145 |
Width (in.) | 23.63 |
Depth (in.) | 23.5 |
Height (in.) | 34 |
Handle Type | Recessed |
Door Swing Option | Reversible Hinge |
Manufacturer Warranty | 1 Year Parts & Labor |
Appliance Fit Width (in.) | 24 |
Color | Custom |
Installation Type | Built-In |
Overall Height (in.) | 34 |
Under The Counter Capable | Yes |
Number of Bottles Stored | 20 |
Color Finish Name | Custom |
Bottle Capacity | 20 |
Total Capacity (cu. ft.) | 5.0 |
Voltage | 115 |
Overview | |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
Number of Zones | 1 |
Shelf Type | Steel |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.99 oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Temperature Range | 36 to 68ºF |
Dimensions | |
Depth with Handle | 25.38" (64 cm) |
Depth with door at 90° | 45.5" (116 cm) |
Interior Height 1 | 25.0" (64 cm) |
Interior Width 1 | 19.38" (49 cm) |
Interior Depth 1 | 17.38" (44 cm) |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 19.38" (49 cm) |
Compressor Step Depth | 4.63" (12 cm) |
